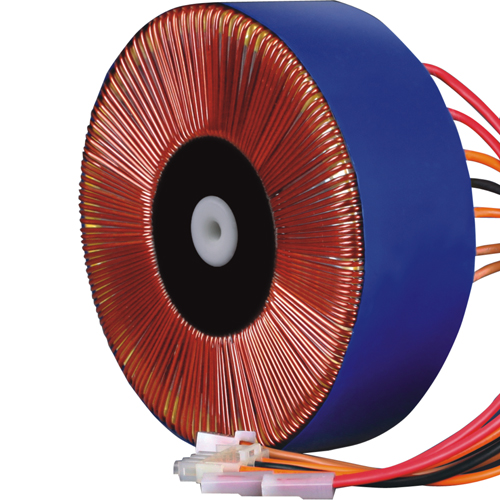

Toroidal Transformer for Lighting
Scientek’s toroidal transformer for lighting industry is distinguished by their low temp rise,
high efficiency, small size, light weight, easy mounting and high reliability.
Brief Specification
ü Power Range:30VA -1000VA
ü Input: On request
ü Output: On request
ü Insulation Class: UL class B. F. H. N.(Optional)
ü Isolation: 4KV (Hi-pot)
|
Rated Power |
Dimension D*H |
Weight |
Temp. Rise |
Approval |
|
30VA |
80mm*32mm |
0.54Kg |
30℃ |
CE/CQC/RoHS/UL |
|
50VA |
90mm*33mm |
0.78Kg |
45℃ |
CE/CQC/RoHS/UL |
|
60VA |
100mm*33mm |
0.94Kg |
47℃ |
CE/CQC/RoHS/UL |
|
80VA |
105mm*34mm |
1.11Kg |
50℃ |
CE/CQC/RoHS/UL |
|
100VA |
110mm*35mm |
1.29Kg |
51℃ |
CE/CQC/RoHS/UL |
|
120VA |
115mm*35mm |
1.48Kg |
52℃ |
CE/CQC/RoHS/UL |
|
250VA |
135mm*42mm |
2.57Kg |
53℃ |
CE/CQC/RoHS/UL |
|
300VA |
152mm*44mm |
3.28Kg |
54℃ |
CE/CQC/RoHS/UL |
|
400VA |
153mm*50mm |
3.87Kg |
54℃ |
CE/CQC/RoHS/UL |
|
500VA |
160mm*55mm |
4.65Kg |
55℃ |
CE/CQC/RoHS/UL |
|
600VA |
175mm*57mm |
5.63Kg |
56℃ |
CE/CQC/RoHS/UL |
|
800VA |
191mm*62mm |
7.05Kg |
57℃ |
CE/CQC/RoHS/UL |
|
1000VA |
192mm*70mm |
8.00Kg |
58℃ |
CE/CQC/RoHS/UL |
|
3000VA |
200mm*120mm |
16.60Kg |
64℃ |
CE/CQC/RoHS/UL |
|
5000VA |
230mm*135mm |
24.00Kg |
65℃ |
CE/CQC/RoHS/UL |
|
